Bosch DBB67AM60B, Integrated Design Hood
£639.00
Available to Order
Please call 01482 847279 for more information
Please call 01482 847279 for more information
- Warranty 2 Years
- Colour: Black body with Bosch Clip design fold out glass
- Energy Rating: B
- Width: 560
- Extraction Rate (m³/h): 460
- Noise Level (db): 63
Variant
- 60 cm wide
- Installation: Cupboard 60 cm
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
- Flush-fitted installation for a seamless integration in wall cupboards.
- Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.
- Glass panel with touch control for an easy operation and enhanced vapor capture.
- Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
- Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
- Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.
- Electronic control via TouchControl
- 3 power levels & intensive setting
- Softlight dimmer function
- 2 x 2 W LED lights
- Colour Temperature: 3500 K
- Light Intensity: 451 lux
- Automatic intensive revert
- Automatic intensive revert (6mins)
- Steel filter cover

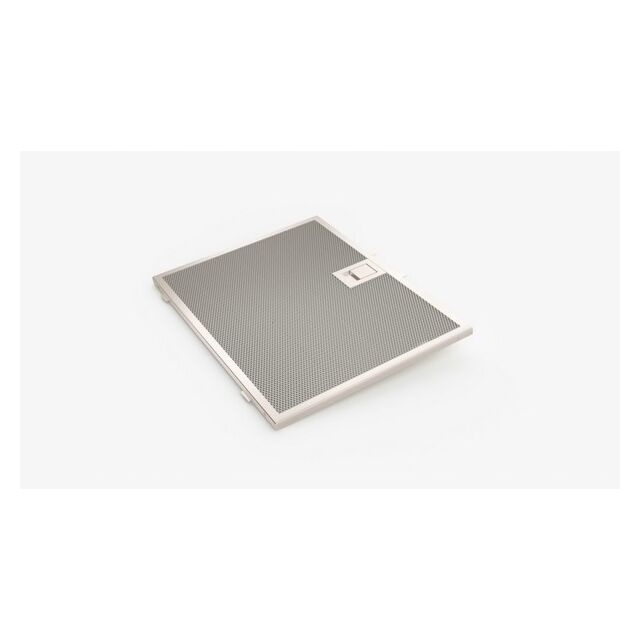

- 2 removable metal grease filter cassettes
- Easy to clean smooth surfaces and materials.
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 460m³/h
- Intensive 749 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 63dB(A) re 1 pW
- Intensive: 73 dB(A) re 1 pW
- Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 451m³/h
- Intensive: 652m³/h
- Noise level in recirculation mode:
- Max. normal use: 67dB(A) re 1 pW
- Intensive: 74 dB(A) re 1 pW
- Installation system: IDH comfort installation
- Suitable for installation in bottomless wall cupboards.
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Chimney extensions are compatible with the available recirculation kits.
- Dimensions (HxWxD): 340 x 597 x 298 mm
- Built-in dimensions (HxWxD): 340 x 560 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
- Electrical cable length 1.3 m
- Please reference the built-in dimensions provided in the installation drawings
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 62.7 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Power rating: 256 W
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005297948 |
| Colour | Black body with Bosch Clip design fold out glass |
| Model Number | DBB67AM60B |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 27.6 |
| Fluid Dynamic Efficiency Class | B |
| Lighting Efficiency | 71.6 |
| Grease Filtering Efficiency | 90.2 |
| Grease Filtering Efficiency Class | B |
| Min Air Flow | 265 |
| Air Flow Boost | 749 |
| Sound Power Max Speed | 63 |
| Sound Power Min Speed | 50 |
| Sound Power Boost | 73 |
| Noise Level Boost Position | 73 |
| Max Output Air Extraction | 460 |
| Boost Position Air Extraction | 749 |
| Max Output Recirculating Air | 451 |
| No Return Air Flow Flap | Yes |
| Boost Position Output Recirculating | 652 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| Height without Chimney | 60 |
| Number of Lights | 2 |
| Energy Rating | B |
| Width | 560 |
| Extraction Rate (m³/h) | 460 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Warranty Duration | 2 |
| Cord Length | 130 |
| Plug Type | GB plug |
| Appliance Frequency (Hz) | 50 |
| Appliance Voltage (V) | 220-240 |
| Installation Type | Built-In |
| Construction Type | Built-In |
| Type of Control Settings | Touch Control |
| Max Niche Width | 560 |
| Niche Depth | 300 |
| Type of Control / Appliances | Electronic |
