Key performance features:

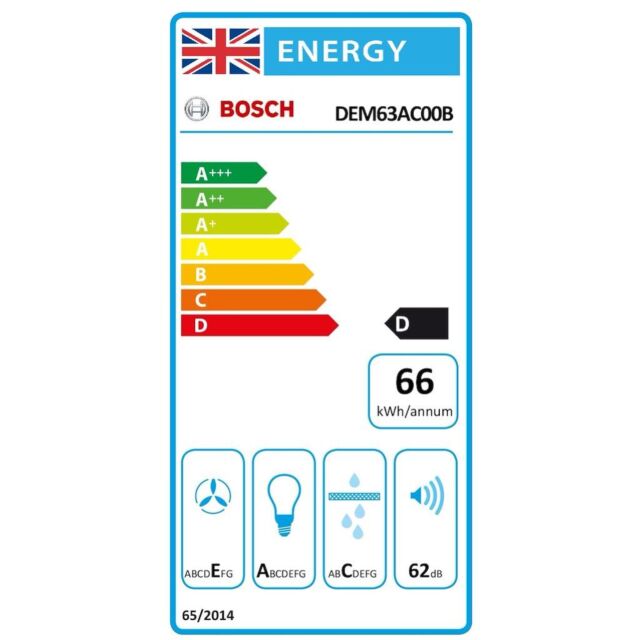

- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 max. 368 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*

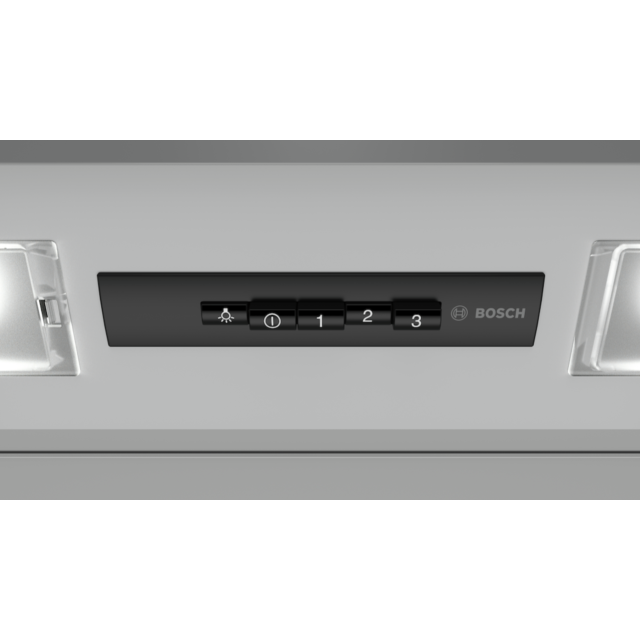

- Push button control for extractor speeds and light
- 3 power levels
- Single motor

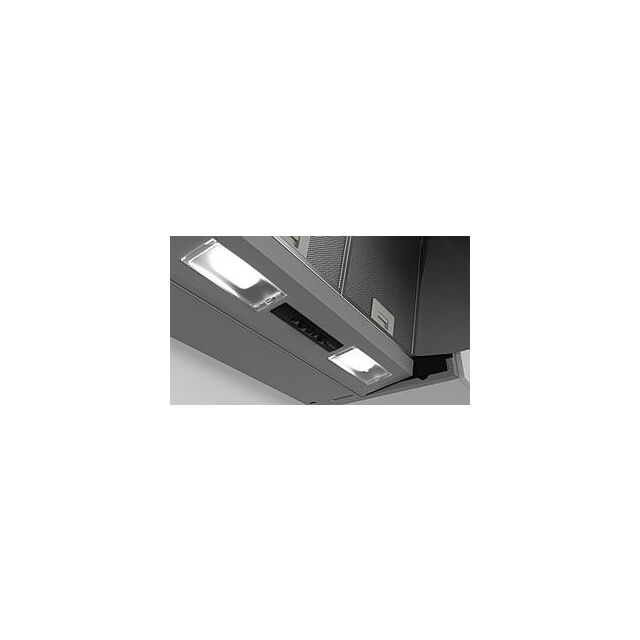

- 2 x 3W LED
- Colour Temperature: 2700 K

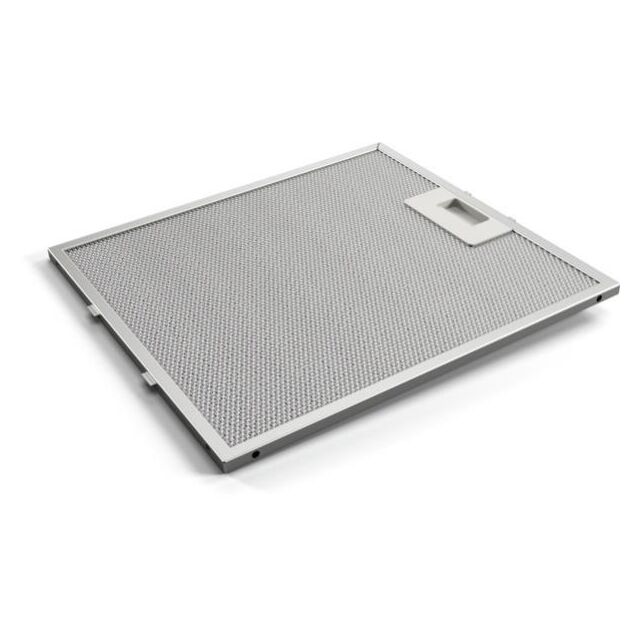

- 2 removable metal grease filter cassettes

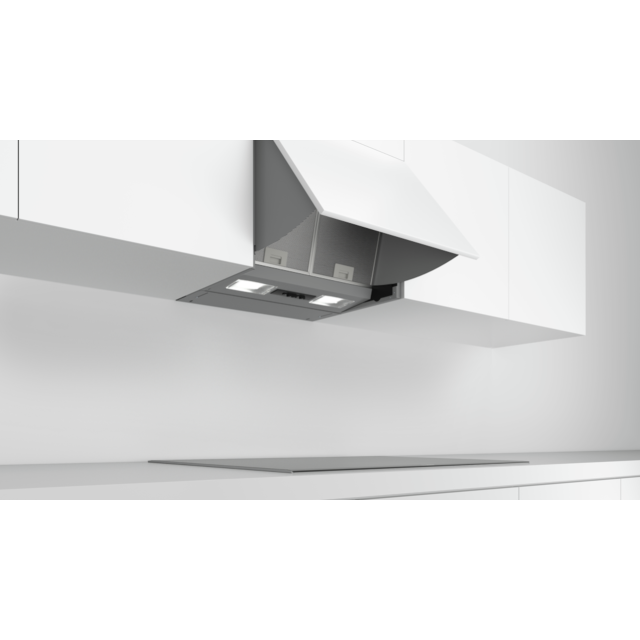

- Installation: Between Cupboards
- Integrated hood
- Push button control
- Mechanical
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 62 dB(A) re 1 pW
- Light Intensity: 188 lux
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
- Dimensions recirculating (HxWxD): 402-402 x 599 x 271 mm
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 65.7 kWh/year*
- Recirculating kit DWZ0IM0A0
| Type of Control Settings | Button |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE |
| Plug Type | GB plug |
| Cord Length | 150 |
| Warranty Duration | 2 |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 10.9 |
| Fluid Dynamic Efficiency Class | E |
| Lighting Efficiency | 29.0 |
| Grease Filtering Efficiency | 76.0 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 240.0 |
| Air Flow Boost | 0.0 |
| Sound Power Max Speed | 62 |
| Sound Power Min Speed | 52 |
| Max Output Air Extraction | 368 |
| Max Output Recirculating Air | 272 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| No Return Air Flow Flap | Yes |
| Extraction Rate (m³/h) | 368 |
| Energy Rating | D |
| Type of Control / Appliances | Mechanical |
| Manufacturer | Bosch |
| GTIN | 4242005041107 |
| Colour | Metallic silver |
| Model Number | DEM63AC00B |
| Discontinued Status | expired |
Write Your Own Review

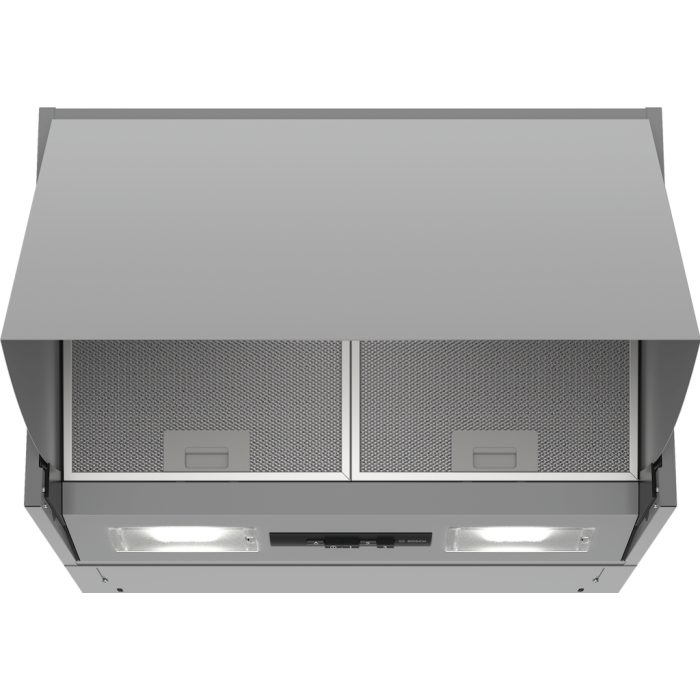

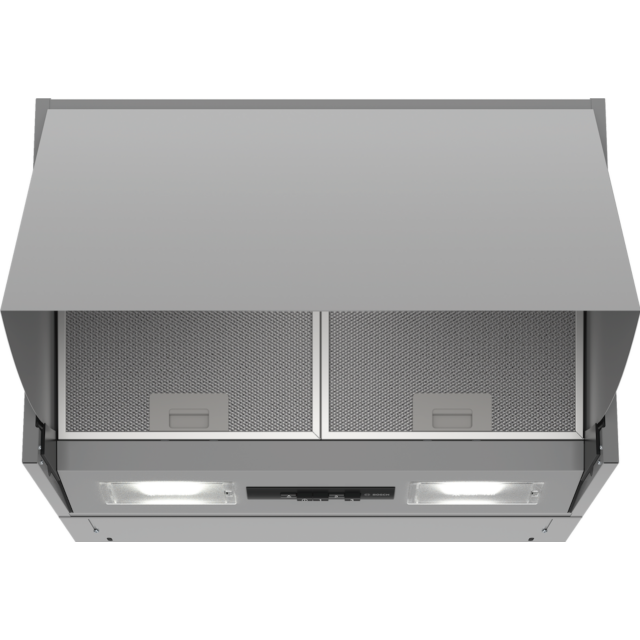

Bosch DEM63AC00B, Integrated cooker hood
This item is no longer available
- Warranty 2 Years
Colour
Metallic silver
Energy Rating
D
Extraction Rate (m³/h)
368
Noise Level (db)
62
