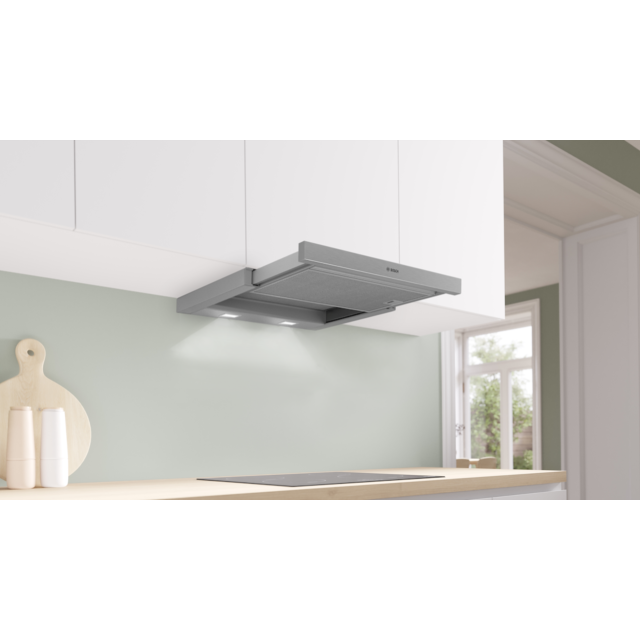

Bosch DFM063W56B, Telescopic cooker hood

Price Saving SAVE
£10

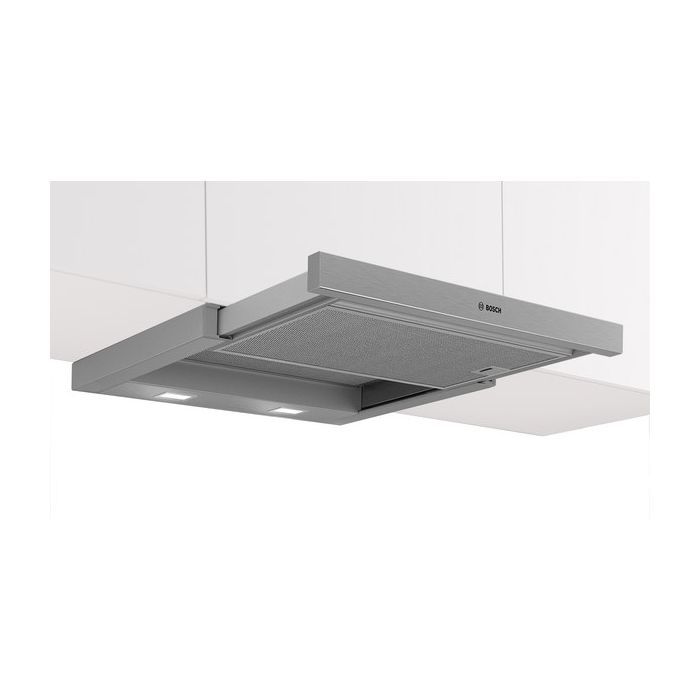

main product photo
Be the first to review this product
Now £199.00 Was £209.00 Save £10.00
Available to Order
Please call 01482 847279 for more information
Enquire Now

Add appliance cover for£0.00 per month Cancel anytime

FIRST MONTH FREE

Receive the following benefits if your appliance fails during your appliance manufacturers warranty.

  • Appliance not fixed within 14 days? We’ll replace it.
  • Appliance failed more than 3 times? We’ll replace it.
  • And, covered for up to £125 for…
    • Time taken off work.
    • Failures caused by incorrect installation.
    • Failures caused lack of maintenance.
    • Failures caused rust or water damage.
    • Replacement of cosmetic parts if refused by the manufacturer.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expense such as laundrette costs.

After your appliance manufacturers warranty expires, you will benefit from,

  • Repairs if your appliance fails.
  • Parts & labour costs included.
  • A replacement appliance if we cannot repair yours.
  • A free appliance service for laundry, refrigeration or cooking appliances.
  • Up to £250 reinstallation costs if we replace your appliance.
  • And, if we can't repair your appliance within 3 working days you are covered for up to £125 for…
    • Lost wages due to time taken of work.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expenses such as laundrette costs.
    • The cost of replacement cosmetic parts.

Some free of charge benefits are provided to you automatically when you purchase Protect & Care. For full details of Protect & Care, what’s included, excluded, how to claim, refunds, complaints process and how to opt out of the free benefits please read the Terms and Conditions.

Add to Wish List Add to Compare
c rating
  • Warranty 2 Years
  • ColourMetallic silver
  • Energy RatingC
  • Width526
  • Extraction Rate (m³/h)328
  • Noise Level (db)64
  • Air Flow Boost0.0
  • Appliance Current (A)10
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE, E17D UKCA marking, VDE
  • Construction TypeBuilt-In
  • Cord Length175
  • Fluid Dynamic Efficiency14.9
  • Fluid Dynamic Efficiency ClassD
  • Grease Filter MaterialWashable aluminium
  • Grease Filter TypeKassette
  • Grease Filtering Efficiency82.8
  • Grease Filtering Efficiency ClassC
  • Installation TypeBuilt-In
  • Lighting Efficiency45.2
  • Lighting Efficiency ClassA
  • Max Niche Width526
  • Max Output Air Extraction328
  • Max Output Recirculating Air231
  • Min Air Flow255
  • Motor LocationIntegrated motor in hood body
  • Niche Depth290
  • Number of Lights2
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed64
  • Sound Power Min Speed58
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsRocker switch
  • Type of LightLED
  • TypologyPull-out
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242005231942
Price Saving SAVE
£10

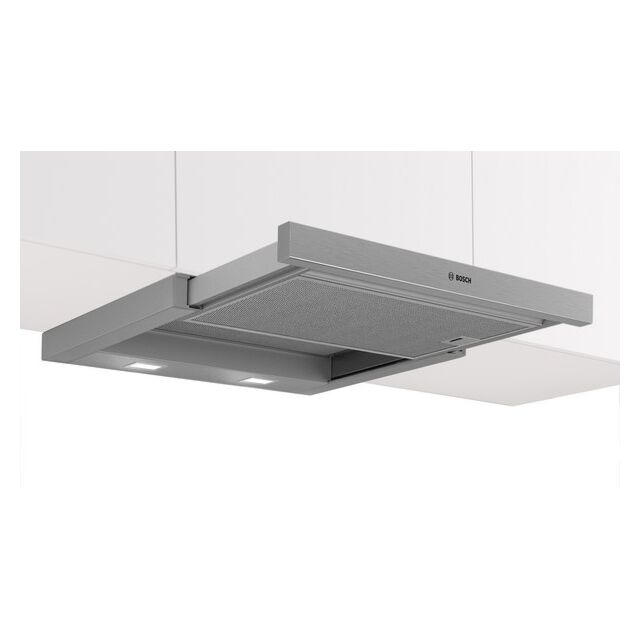

main product photo
Benefits
Features

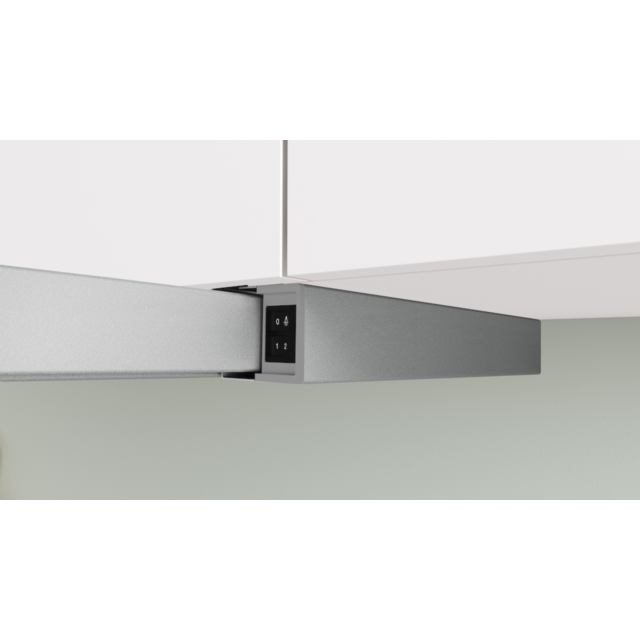

  • Rocker switch control for extractor speeds and light
  • Automatic On/Off operation when telescopic canopy is pulled out and pushed back
  • Capacitor motor
  • 2 power levels
  • 2 x 1,5W LED

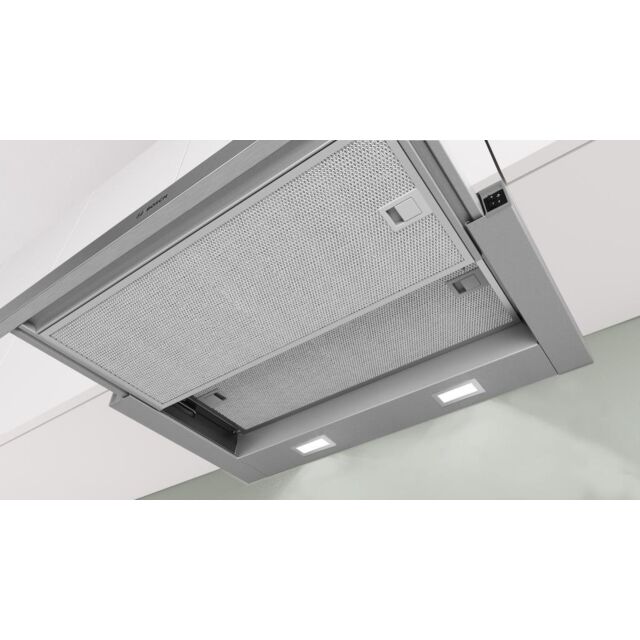

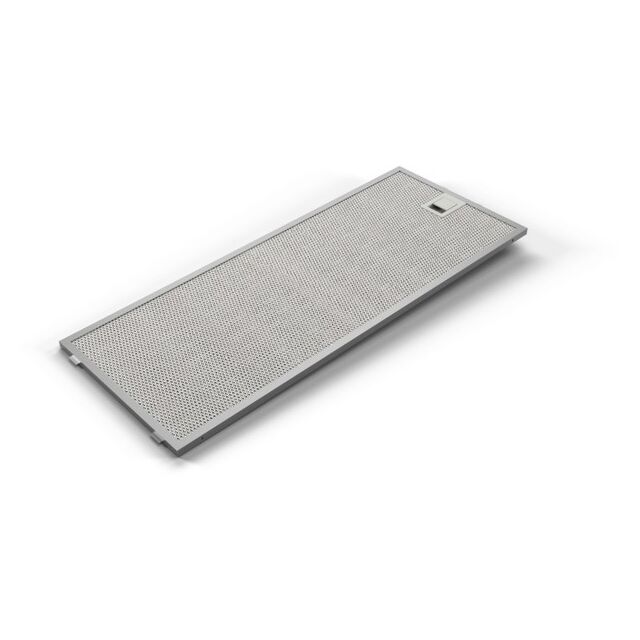

  • 2 removable metal grease filter cassettes
Design
  • 60 cm wide
  • Silver metallic lacquer
  • Handle strip specification: stainless steel with logo
  • Filter cover stainless steel, perforated and dishwasher safe
Performance
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit (accessory) needed

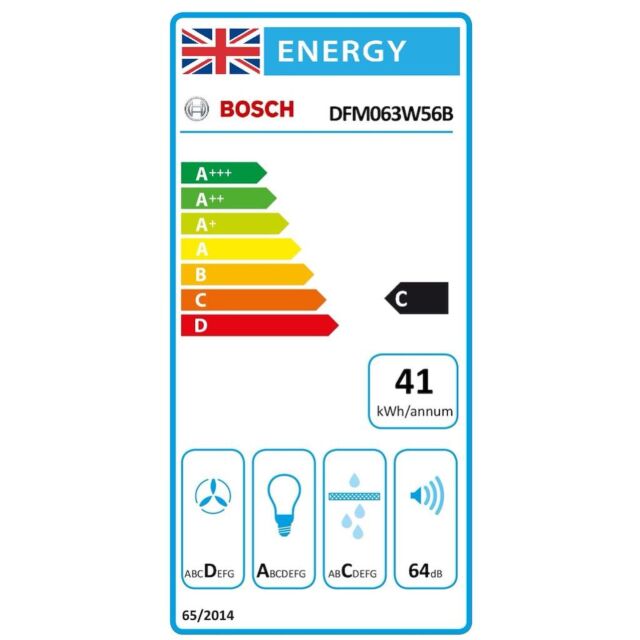

  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 max. 328 m³/h
  • Noise level according to EN 60704-2-13 at max.normal use exhaust air:64 dB(A)re 1 pW(A)re 1 pW
  • Colour Temperature: 3500 K
  • Light Intensity: 131 lux
  • Power rating: 93 W
  • Average Energy Consumption: 41.1 kWh/year*
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Planning and installation information
  • Dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical cable length 1.75 m
More Information
Manufacturer Bosch
GTIN 4242005231942
Colour Metallic silver
Model Number DFM063W56B
Typology Pull-out
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 14.9
Fluid Dynamic Efficiency Class D
Lighting Efficiency 45.2
Grease Filtering Efficiency 82.8
Grease Filtering Efficiency Class C
Min Air Flow 255
Air Flow Boost 0.0
Sound Power Max Speed 64
Sound Power Min Speed 58
Max Output Air Extraction 328
Max Output Recirculating Air 231
Grease Filter Material Washable aluminium
Number of Motors 1
Lighting Efficiency Class A
Grease Filter Type Kassette
Number of Lights 2
Noise Level (db) 64
Energy Rating C
Width 526
Extraction Rate (m³/h) 328
Approval Certificates CE, E17D UKCA marking, VDE
Warranty Duration 2
Cord Length 175
Plug Type GB plug
Appliance Frequency (Hz) 50
Appliance Voltage (V) 220-240
Appliance Current (A) 10
Installation Type Built-In
Construction Type Built-In
Type of Control Settings Rocker switch
Max Niche Width 526
Niche Depth 290
Type of Light LED
Type of Control / Appliances Mechanical
