Key Information
- Electronic control via Soft touch button control
- Installation: Cabinet
- 52 cm wide
- Brushed steel

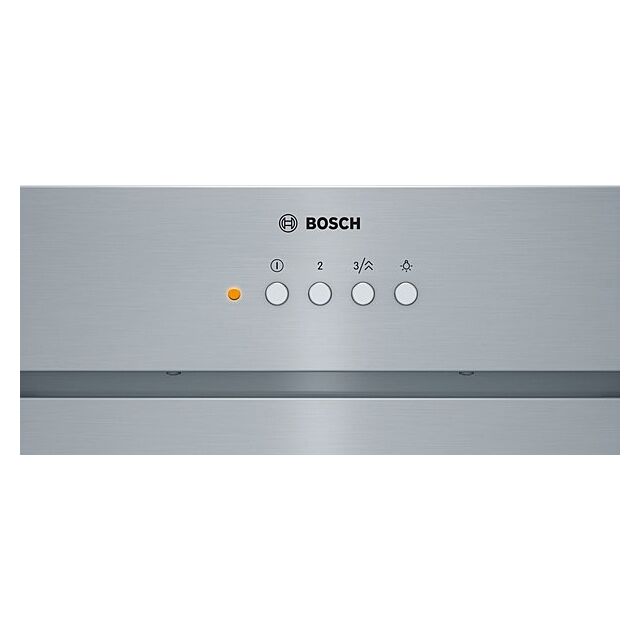

- Soft touch button control with Electronic display
- 3 power levels & intensive setting
- Automatic intensive revert (6mins)
- Rim ventilation
- 2 x 1W LED
- 1 removable metal grease filter cassette
- Filter cover stainless steel, Removable metal grease filters
- Suitable for ducted or recirculating operation
- Extraction rate exhaust air according to EN 61591:
- max. normal use560 m³/h, intensive 615 m³/h
- Power rating: 252 W
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:67dB(A) re 1 pW
- Intensive:70 dB(A) re 1 pW
- Noise max. Normal Level: Noise, max. speed in normal us: 67 dB dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:533m³/h
- Intensive:581m³/h
- Noise level in recirculation mode: Max. normal use:72dB(A) re 1 pW
- Intensive:74 dB(A) re 1 pW
- Average Energy Consumption: 90.2 kWh/year*

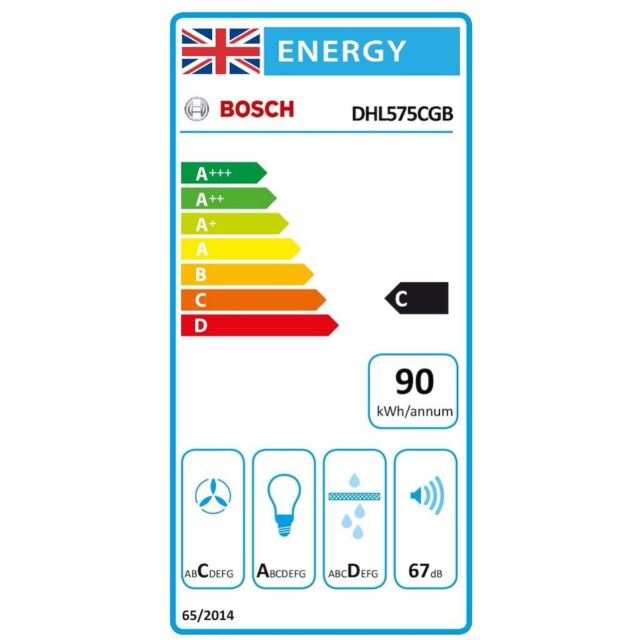

- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: C*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Dimensions exhaust air (HxWxD): 418-418 x 520 x 300 mm
- Dimensions recirculating (HxWxD): 418-418 x 520 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
| Type of Control Settings | LED;Low-lift pushbuttons |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 3 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Approval Certificates | CE, VDE |
| Plug Type | GB plug |
| Cord Length | 150 |
| Max Niche Width | 496 |
| Niche Depth | 264 |
| Type of Light | LED |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 18.1 |
| Fluid Dynamic Efficiency Class | C |
| Lighting Efficiency | 111.0 |
| Grease Filtering Efficiency | 75.0 |
| Grease Filtering Efficiency Class | D |
| Min Air Flow | 295 |
| Air Flow Boost | 615.0 |
| Sound Power Max Speed | 67 |
| Sound Power Min Speed | 50 |
| Sound Power Boost | 70 |
| Noise Level Boost Position | 70 |
| Max Output Air Extraction | 560 |
| Boost Position Air Extraction | 615 |
| Max Output Recirculating Air | 533 |
| Boost Position Output Recirculating | 581 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| No Return Air Flow Flap | Yes |
| Extraction Rate (m³/h) | 560 |
| Energy Rating | C |
| Width | 496 |
| Type of Control / Appliances | Electronic |
| Manufacturer | Bosch |
| GTIN | 4242002831169 |
| Colour | Brushed steel |
| Model Number | DHL575CGB |
| Discontinued Status | discontinued |
Write Your Own Review

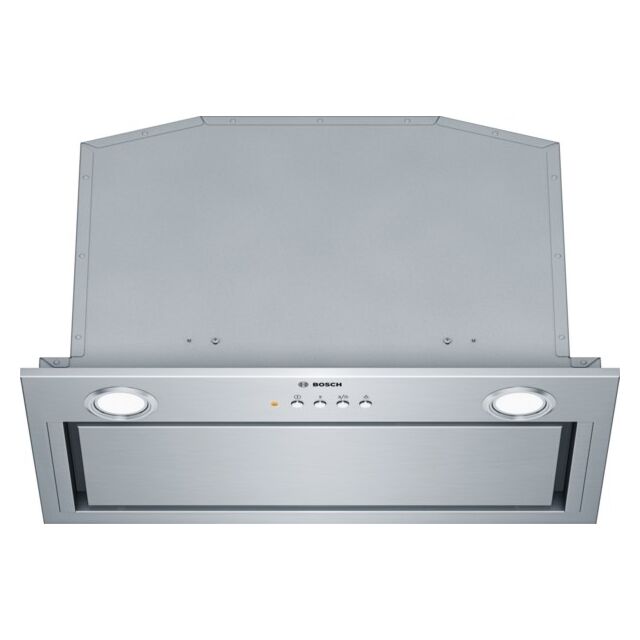

Bosch DHL575CGB, Canopy cooker hood
Retail price
£539.00
Hurry, last few remaining at this price
- Warranty 2 Years
Colour
Brushed steel
Energy Rating
C
Width
496
Extraction Rate (m³/h)
560
Noise Level (db)
67
