Key performance features:
- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Maximum extraction 350 m3/h
- Noise max. Normal Level: Noise, max. speed in normal us: 72 dB dB*

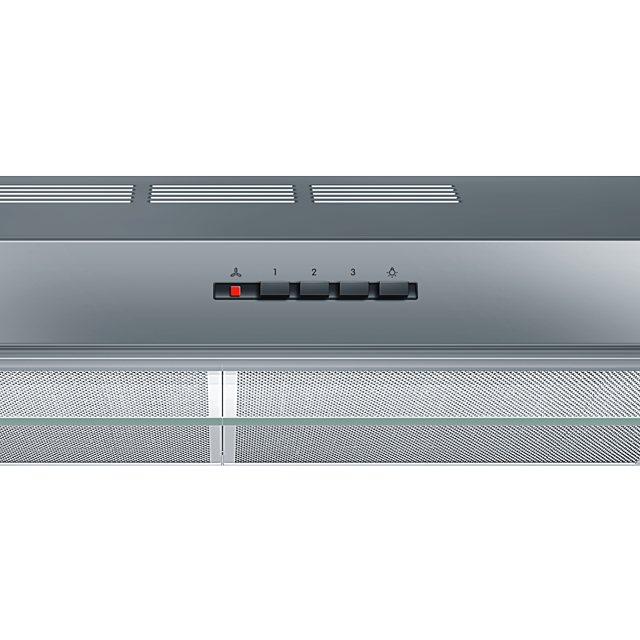

- Push button control for extractor speeds and light
- 3 power levels
- 2 x 4W LED light
- Colour Temperature: 3000 K

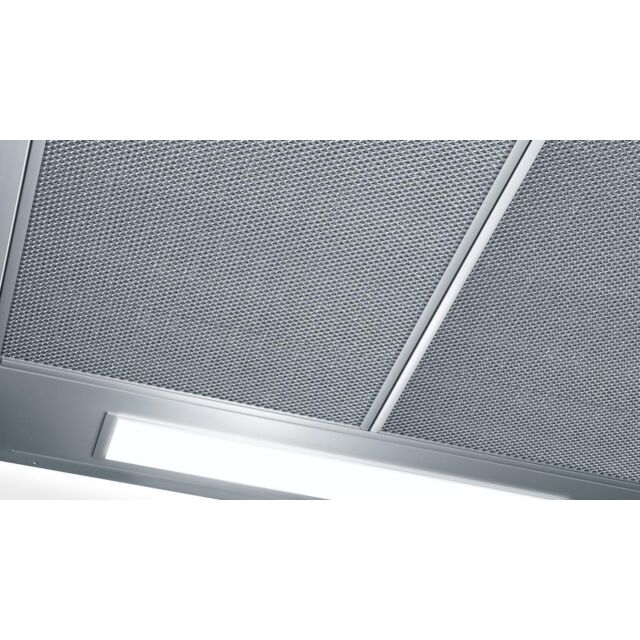

- 2 removable metal grease filter cassettes
- Built under conventional hood
- Installation: Wall or under hang-up cupboard
- Adjustable glass visor
- Push button control
- Mechanical
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 72 dB (A) re 1pW
- Power rating: 146 W
- Light Intensity: 45 lux
- Electrical cable length 1.45 m
- Blower Efficiency Class: E*
- Lighting Efficiency Class: E*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 93.3 kWh/year*
- Diameter pipe Ø 120 mm (Ø 100 mm enclosed)
- Dimensions exhaust air (HxWxD): 150-150 x 600 x 482 mm
- Dimensions recirculating (HxWxD): 150-150 x 600 x 482 mm
- Recirculating kit DHZ2701
| Type of Control Settings | Button |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Approval Certificates | CE |
| Plug Type | GB plug |
| Cord Length | 145 |
| Warranty Duration | 2 |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 8.7 |
| Fluid Dynamic Efficiency Class | E |
| Lighting Efficiency | 11.0 |
| Grease Filtering Efficiency | 75.1 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 175 |
| Air Flow Boost | 0.0 |
| Sound Power Max Speed | 72 |
| Sound Power Min Speed | 56 |
| Max Output Air Extraction | 350 |
| Max Output Recirculating Air | 110 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | E |
| Grease Filter Type | Kassette |
| No Return Air Flow Flap | Yes |
| Extraction Rate (m³/h) | 350 |
| Noise Level (db) | 72 |
| Energy Rating | D |
| Type of Control / Appliances | Mechanical |
| Manufacturer | Bosch |
| GTIN | 4242002968513 |
| Colour | Brushed steel |
| Model Number | DUL63CC50B |
Write Your Own Review

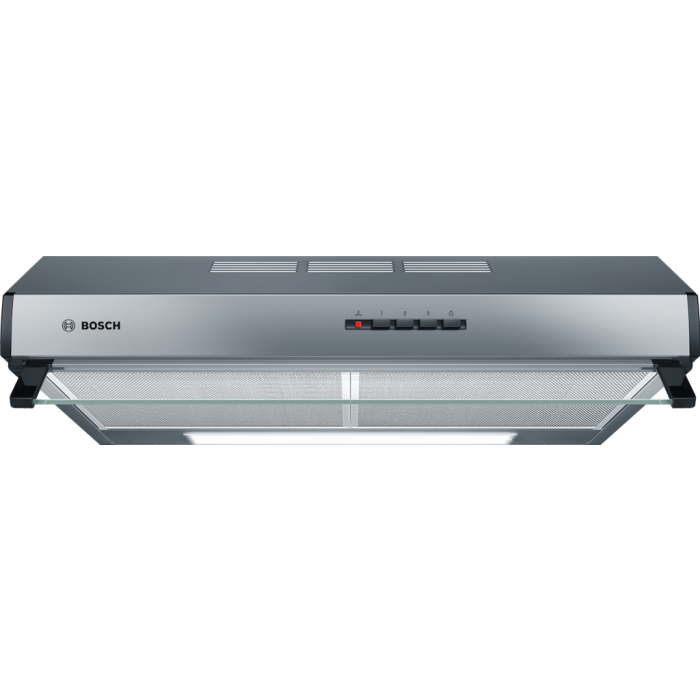

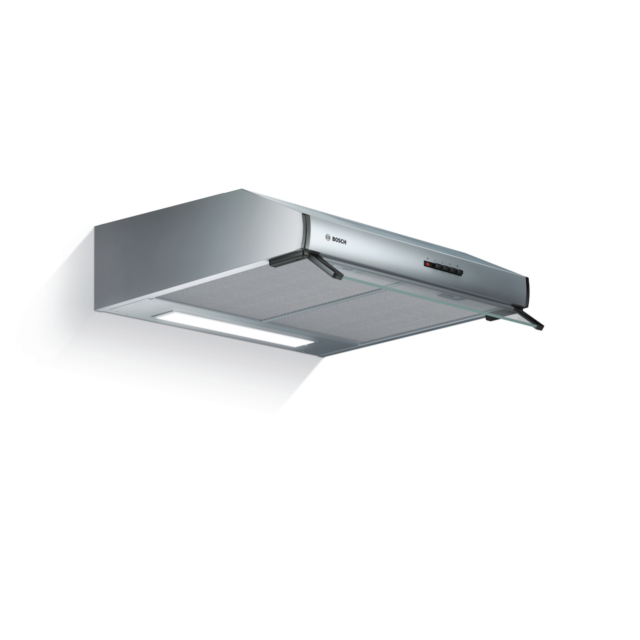

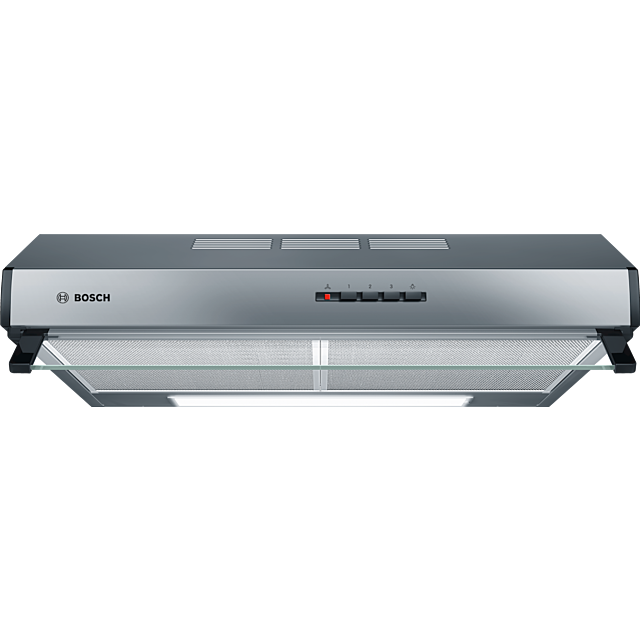

Bosch DUL63CC50B, Built-under cooker hood
Retail price
£179.00
- Warranty 2 Years
Colour:
Brushed Steel
Energy Rating:
D
Extraction Rate (m³/h):
350
Noise Level (db):
72
