Design:
- Inclined glass common design
- wall-mounted
- Glass plate: Black
- Suitable for ducted or recirculating operation
- SilentPowerDrive
- 2 PC, LED, 3W, with Colour temperature adjustable
- Softlight dimmer function : the lighting elements switch on and off smoothly.
- Dimmer function : the brightness of the lighting elements can be adjusted.
- Colour Temperature: 3500 K
- Light Intensity: 502 lux
- 2 capture areas: front side and bottom side
- 2 metal grease filter(s).
- 3 power levels & intensive setting
- Automatic reset from intensive to normal setting after 6 min
- Home Connect: operate, monitor and set preferences of your hood via smartphone or tablet (only in countries where Home Connect service is available)

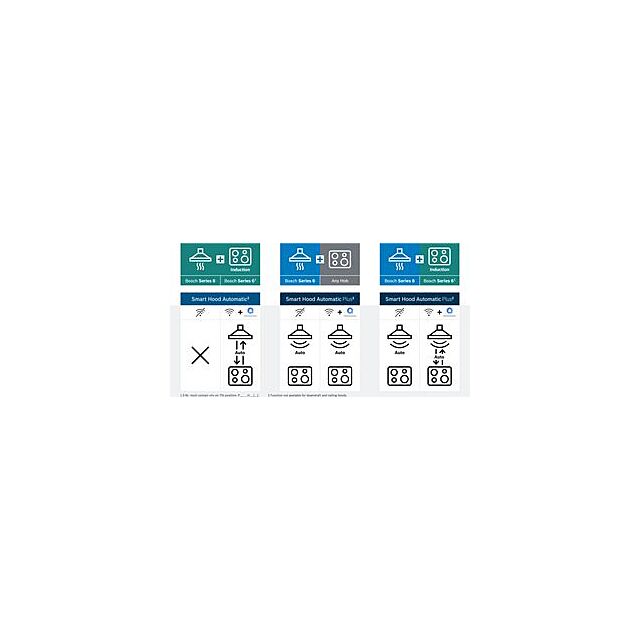

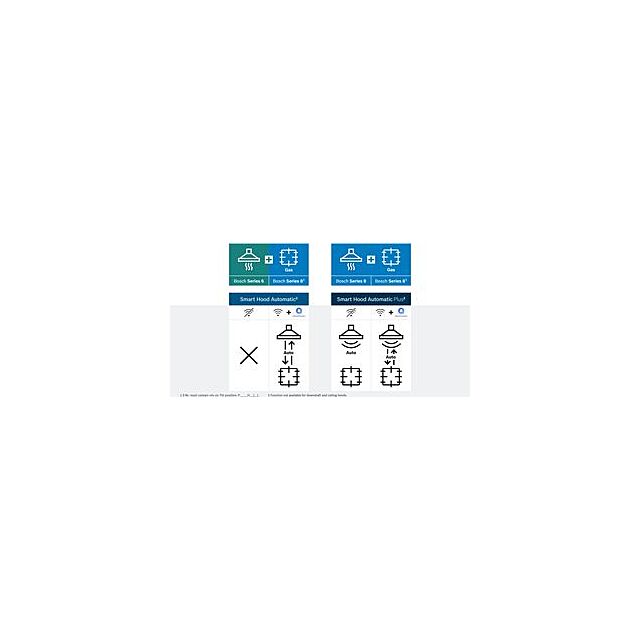

- Smart Hood Automatic: Hood automatically adapts fan speed thanks to hob continuously providing cooking data (with matching hob and connected Home Connect account)
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- LED light with adjustable light temperature: Allows you to adapt the light temperature to your personal needs via Home Connect App
- After run function: available via Home Connect App
- Interval function: available via Home Connect App
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Large opening angle of the glass plate with locking function for an easy filter accessibility and easy cleaning.
- Easy to clean smooth surfaces and materials.
- Removable metal grease filters dishwasher-safe
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 223 m3/h; noise level 39 dB (A) re1pW Speed 2: extraction rate 319 m3/h; noise level 48 dB (A) re1pW Speed 3: extraction rate 431 m3/h; noise level 56 dB (A) re1pW Intensive 1: extraction rate 768 m3/h; noise level 68 dB (A) re1pW
- Energy Efficiency Class: A+ (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 31.7 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- For recirculation operation Long-life Clean Air recirculation kit (accessory) needed.
- In recirculation operation, chimless use possible
- The Long-life Clean Air odour filter absorbs intense odours, such as fish, as well as pollen. The lifetime can be extended up to 4 times by refreshing the filter in the oven
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 218 m3/h ; noise level 47 dB (A) re1pW Speed 2: extraction rate 314 m3/h ; noise level 54 dB (A) re1pW) Speed 3: extraction rate 438 m3/h ; noise level 63 dB A) re1pW) Intensive Speed 1: extraction rate 692 m3/h ; noise level 75 dB (A) re1pW)
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Long-life Clean Air recirculation kit, for installation with chimney (available as optional accessory):
- Speed 1: extraction rate 218 m3/h; noise level 47 dB(A) re1pW
- Speed 2: extraction rate 317 m3/h; noise level 54 dB(A) re1pW
- Speed 3: extraction rate 437 m3/h; noise level 62 dB(A) re1pW
- Intensive Speed 1: extraction rate 696 m3/h; noise level 73 dB (A) re1pW
- Consumption data:
- Power rating: 140 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Silent blower technology
- Available Long-life Clean Air odour filter with extended lifetime up to 4 times
- Dimensions exhaust air (HxWxD): 766-981 x 590 x 433 mm
- Dimensions recirculating (HxWxD): 800-1016 x 590 x 433 mm
- Diameter pipe Ø 150mm
- Electrical cable length 1.3 m
- If connecting to an existing exhaust, a reducer piece from 150mm to 120mm can be ordered as special accessory, if needed.
- In exhaust mode a backpressure flap (DWZ1XX1H2) is recommended.
| Type of Control Settings | Touch control;Via app |
|---|---|
| Installation Type | Built-In |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Type of Light | LED |
| Number of Lights | 2 |
| Typology | Wall-mounted |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 37.1 |
| Fluid Dynamic Efficiency Class | A |
| Lighting Efficiency | 69.7 |
| Grease Filtering Efficiency | 75.8 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 223 |
| Air Flow Boost | 768 |
| Sound Power Max Speed | 56 |
| Sound Power Min Speed | 39 |
| Noise Level Boost Position | 68 |
| Max Output Air Extraction | 431 |
| Boost Position Air Extraction | 768 |
| Max Output Recirculating Air | 438 |
| Boost Position Output Recirculating | 692 |
| Grease Filter Material | Washable aluminium |
| Chimney Colour | Black |
| Lighting Efficiency Class | A |
| Diameter of Air Outlet | 150 |
| Extraction Rate (m³/h) | 431 |
| Noise Level (db) | 56 |
| Energy Rating | A+ |
| Type of Control / Appliances | Electronic |
| Manufacturer | Bosch |
| GTIN | 4242005585144 |
| Colour | Black glass |
| Model Number | DWK67PN61B |
Write Your Own Review
Bosch DWK67PN61B, Wall-mounted cooker hood
Retail price
£709.00
Available to Order
Please call 01482 847279 for more information
Please call 01482 847279 for more information
- Warranty 5 Years
Colour:
Black glass
Energy Rating:
A+
Extraction Rate (m³/h):
431
Noise Level (db):
56
