Features
- Electronic controls via Soft touch control
- 3 speeds plus intensive
- 2 x 1,5W LED
- Efficient BLDC technology
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 minutes))
- 2 metal grease filter cassettes
- 60 cm wide
- Silver metallic grey
- Handle strip specification: stainless steel with logo
- Filter cover stainless steel, perforated and dishwasher safe
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit (accessory) needed

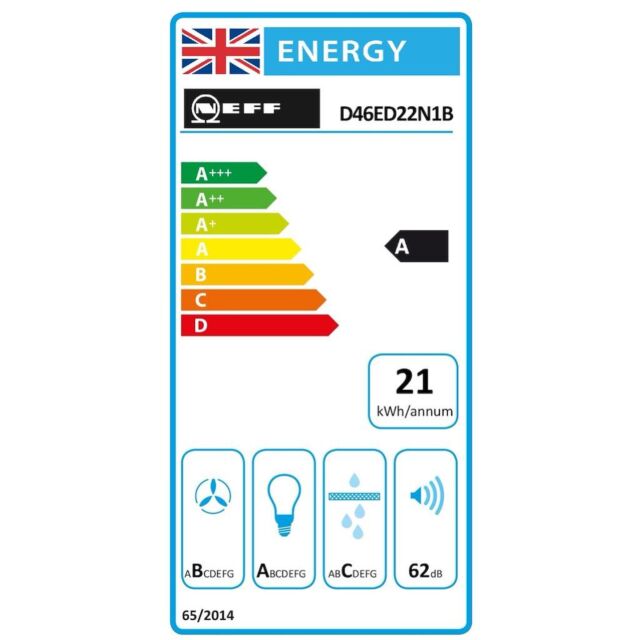

- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 268m³/h
- Intensive 400 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 62 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 62dB(A) re 1 pW
- Intensive: 69 dB(A) re 1 pW
- Colour Temperature: 3500 K
- Light Intensity: 294 lux
- Power rating: 74 W
- Average Energy Consumption: 21 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Installation: Cupboard 60 cm
- Dimensions (HxWxD): 203 x 598 x 290 mm
- Built-in dimensions (HxWxD): 162 x 526 x 290 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Electrical cable length 1.75 m
| Type of Control Settings | Button |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 175 |
| Warranty Duration | 2 |
| Max Niche Width | 526 |
| Niche Depth | 290 |
| Type of Light | LED |
| Number of Lights | 2 |
| Typology | Pull-out |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 24.6 |
| Fluid Dynamic Efficiency Class | B |
| Lighting Efficiency | 71.7 |
| Grease Filtering Efficiency | 79.6 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 161 |
| Air Flow Boost | 400 |
| Sound Power Max Speed | 62 |
| Sound Power Min Speed | 49 |
| Sound Power Boost | 69 |
| Noise Level Boost Position | 69 |
| Max Output Air Extraction | 268 |
| Boost Position Air Extraction | 400 |
| Max Output Recirculating Air | 263 |
| Boost Position Output Recirculating | 353 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| Extraction Rate (m³/h) | 268 |
| Noise Level (db) | 62 |
| Energy Rating | A |
| Width | 526 |
| Type of Control / Appliances | Electronic |
| Manufacturer | Neff |
| GTIN | 4242004250807 |
| Colour | Stainless Steel |
| Model Number | D46ED22N1B |
Write Your Own Review

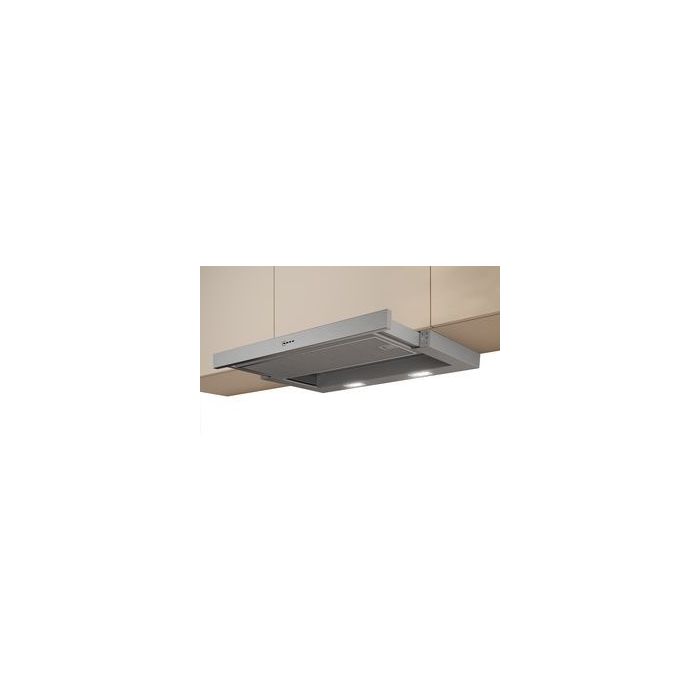

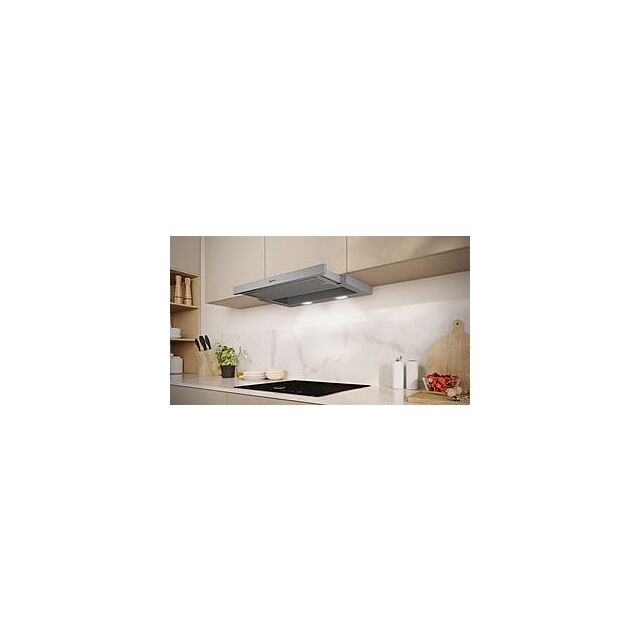

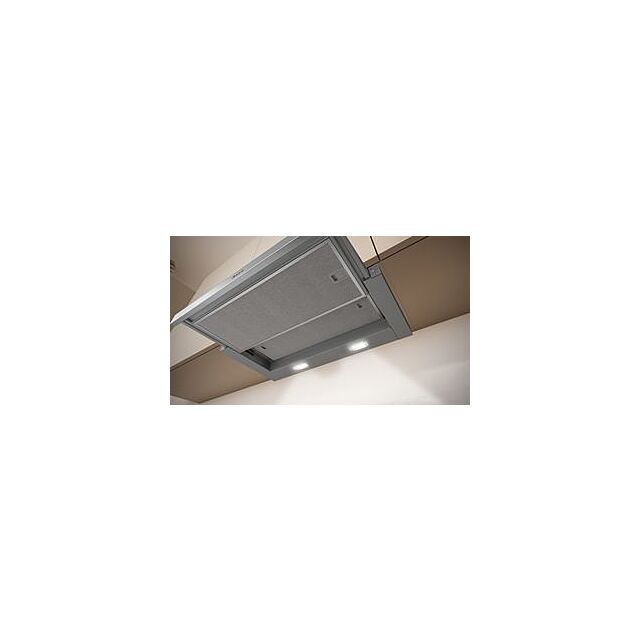

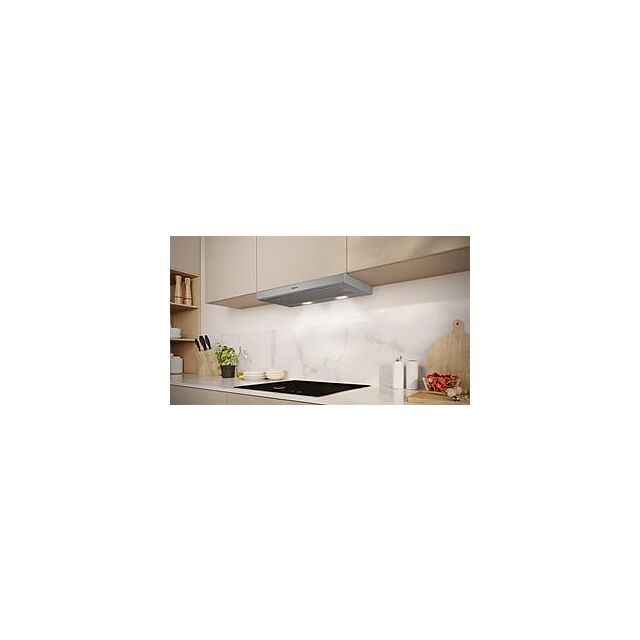

Neff D46ED22N1B, Telescopic cooker hood
Retail price
£349.00
- Warranty 2 Years
Colour:
Stainless steel
Energy Rating:
A
Width:
526
Extraction Rate (m³/h):
268
Noise Level (db):
62
