Features
- Electronic controls via Soft touch control
- 3 speeds plus intensive
- 3 x 1,5W LED
- Efficient BLDC technology
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 minutes))
- 3 metal grease filter cassettes
- 90 cm wide
- Silver metallic grey
- Handle strip specification: stainless steel with logo
- Filter cover stainless steel, perforated and dishwasher safe
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit (accessory) needed

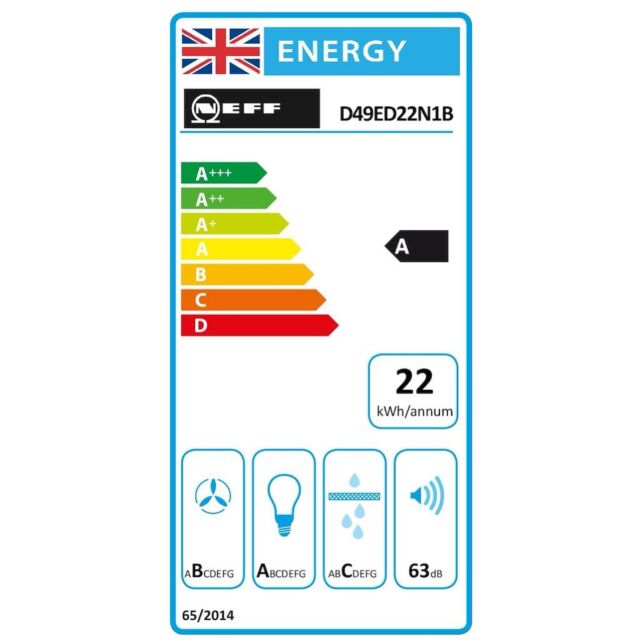

- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 266m³/h
- Intensive 412 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 63dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- Colour Temperature: 3500 K
- Light Intensity: 355 lux
- Average Energy Consumption: 22.2 kWh/year*
- Power rating: 76 W
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Dimensions (HxWxD): 203 x 898 x 290 mm
- Built-in dimensions (HxWxD): 162 x 526 x 290 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Electrical cable length 1.75 m
| Type of Control Settings | Button |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 175 |
| Warranty Duration | 2 |
| Max Niche Width | 526 |
| Niche Depth | 290 |
| Type of Light | LED |
| Number of Lights | 3 |
| Typology | Pull-out |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 23.7 |
| Fluid Dynamic Efficiency Class | B |
| Lighting Efficiency | 65.7 |
| Grease Filtering Efficiency | 81.8 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 164 |
| Air Flow Boost | 412 |
| Sound Power Max Speed | 63 |
| Sound Power Min Speed | 50 |
| Sound Power Boost | 70 |
| Noise Level Boost Position | 70 |
| Max Output Air Extraction | 266 |
| Boost Position Air Extraction | 412 |
| Max Output Recirculating Air | 263 |
| Boost Position Output Recirculating | 353 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| Extraction Rate (m³/h) | 266 |
| Noise Level (db) | 63 |
| Energy Rating | A |
| Width | 526 |
| Type of Control / Appliances | Electronic |
| Manufacturer | Neff |
| GTIN | 4242004251163 |
| Colour | Stainless Steel |
| Model Number | D49ED22N1B |
Write Your Own Review
Neff D49ED22N1B, Telescopic cooker hood
Retail price
£409.00
- Warranty 2 Years
Colour:
Stainless steel
Energy Rating:
A
Width:
526
Extraction Rate (m³/h):
266
Noise Level (db):
63
