Design:
- Installation in a wall cupboard
- Flush-fitted installation for a seamless integration in wall cupboards.
- Glass panel: clear glass
- Enlarged storage space: max. 10 kg capacity on each hood side
- Suitable for ducted extraction and recirculation
- Capacitor energy efficient
- 2 x LED 1.5W
- Colour Temperature: 3500 K
- Light Intensity: 290 lux
- 2 metal grease filter(s).
- Adjustable glass visor for additional vapour capture
- Cupboard protection: additional side and rear protection against vapour
- Push button control operation for extractor speeds and light
- 3 power levels
- Easy to clean smooth surfaces and materials.
- metal grease filter dishwasher-safe
- Coated surfaces for less fingerprint sensitivity
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode:
- Speed 1: extraction rate 349 m3/h; noise level 54 dB(A) re1pW
- Speed 2: extraction rate 458 m3/h; noise level 60 dB(A) re1pW
- Speed 3: extraction rate 583 m3/h; noise level 65 dB (A) re1pW

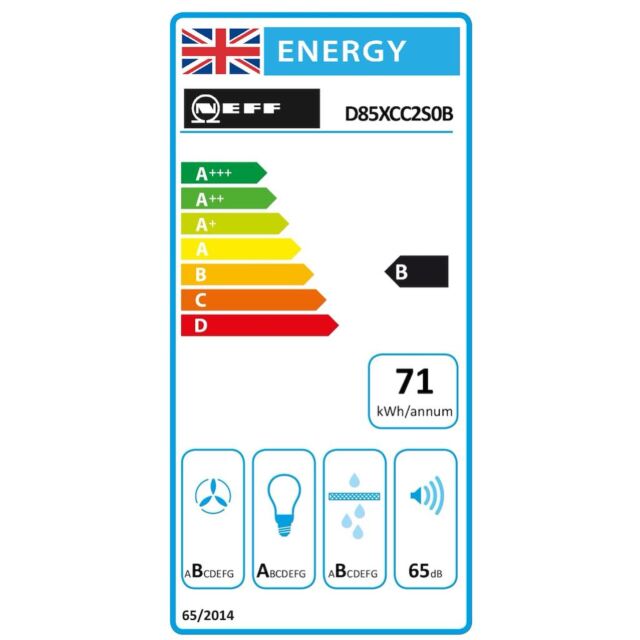

- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 70.5 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- For recirculation operation Long-life Clean Air recirculation kit (accessory) needed
- The Long-life Clean Air odour filter absorbs intense odours, such as fish, as well as pollen. The lifetime can be extended up to 4 times by refreshing the filter in the oven
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Long-life Clean Air recirculation kit (available as optional accessory):
- Speed 1: extraction rate 333 m3/h; noise level 61 dB(A) re1pW
- Speed 2: extraction rate 441 m3/h; noise level 68 dB(A) re1pW
- Speed 3: extraction rate 521 m3/h; noise level 72 dB (A) re1pW
- Consumption data:
- Power rating: 200 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Made in Germany: produced at a CO2 neutral production site
- Environmentally friendly packaging
- Available Long-life Clean Air odour filter with extended lifetime up to 4 times
- Installation: Cupboard 80 cm
- Installation system: IDH comfort installation
- Appliance dimensions (HxWxD): 340 x 798 x 298 mm
- Built-in dimensions (HxWxD): min. 340 mm x 760 mm x min. 300 mm
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Diameter pipe Ø 150 mm
- Electrical cable length 1.3 m
| Type of Control Settings | Button |
|---|---|
| Installation Type | Built-In |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Max Niche Width | 760 |
| Niche Depth | 300 |
| Type of Light | LED |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 23.5 |
| Fluid Dynamic Efficiency Class | B |
| Lighting Efficiency | 46.0 |
| Grease Filtering Efficiency | 91.0 |
| Grease Filtering Efficiency Class | B |
| Min Air Flow | 349 |
| Sound Power Max Speed | 65 |
| Sound Power Min Speed | 54 |
| Max Output Air Extraction | 582 |
| Max Output Recirculating Air | 521 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| Diameter of Air Outlet | 150 |
| Extraction Rate (m³/h) | 582 |
| Energy Rating | B |
| Width | 760 |
| Type of Control / Appliances | Mechanical |
| Manufacturer | Neff |
| GTIN | 4242004287964 |
| Model Number | D85XCC2S0B |
Write Your Own Review

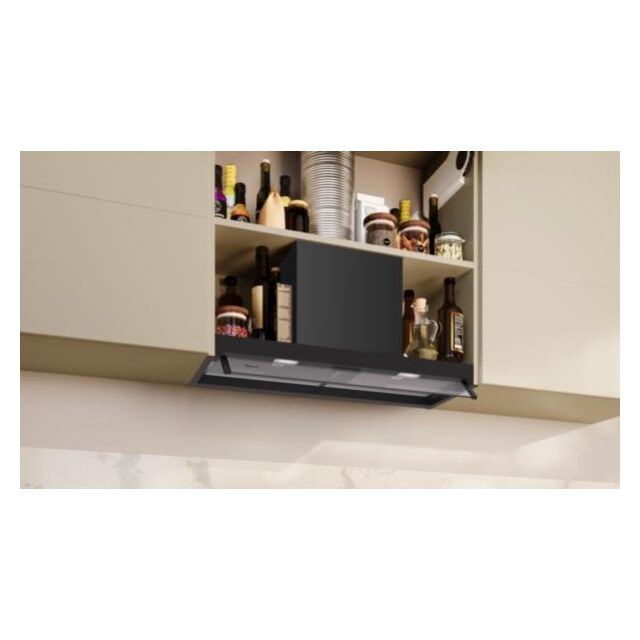

Neff D85XCC2S0B, Integrated Design Hood
Retail price
£389.00
- Warranty 2 Years
Energy Rating
B
Width
760
Extraction Rate (m³/h)
582
Noise Level (db)
65
