- Can accommodate up to:
- -40plates
- -192 espresso cups
- Flex Design
- Touch key operation
- Push-Pull opening mechanism
- User-friendly electronics: extremely
- easy and comfortable operation
- In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.
- Temperature control in 4 levels: ca. 30°C - 80°C (glass surface temperature)
- Favourites button - manage via Home Connect app
- Multifunctional warming drawer with the heating functions: Low temperature cooking, Keep warm, plate warming, cup warming
- Easy to clean toughened glass heating plate
- Total connected load electric: 0.82 KW
- Nominal voltage: 220 - 240 V
- Cavity volume: 54 l
- Loading up to 25 kg
- Appliance dimension (hxwxd): 290 mm x 594 mm x 518 mm
- Niche dimension (hxwxd): 290 mm x 560 mm - 568 mm x 550 mm
- “For-details-on-installation-and-ventilation requirements – please refer to the installation manual prior to fitting.”
| Type of Control Settings | Touch control;Via app |
|---|---|
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Plug Type | GB plug |
| Cord Length | 175 |
| Min Niche Height | 290 |
| Max Niche Height | 290 |
| Max Niche Width | 568 |
| Niche Depth | 550 |
| Reference Plate Diameter | 26 |
| Max Number of Reference Plates | 40 |
| Max Number of Espresso Cups | 192 |
| Width | 560 |
| Manufacturer | Neff |
| GTIN | 4242004265405 |
| Model Number | N39HA11Y1B |

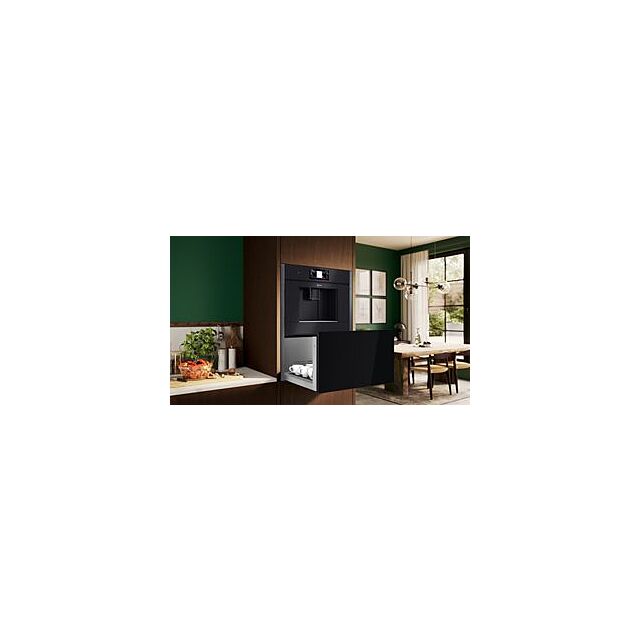

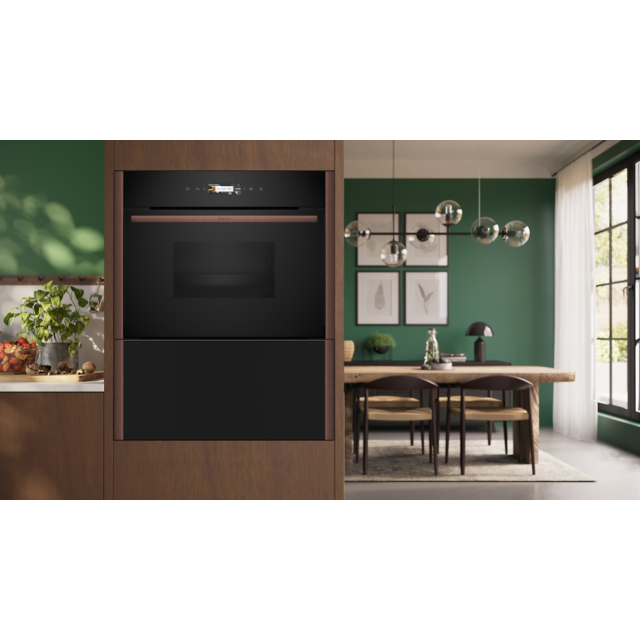

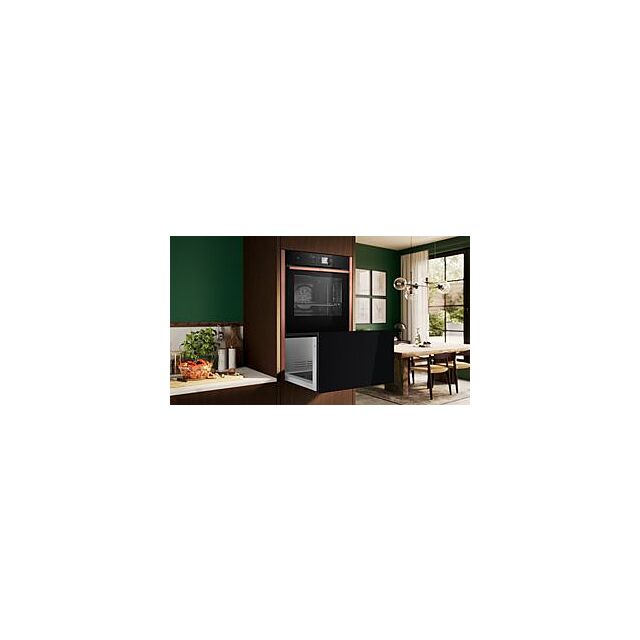

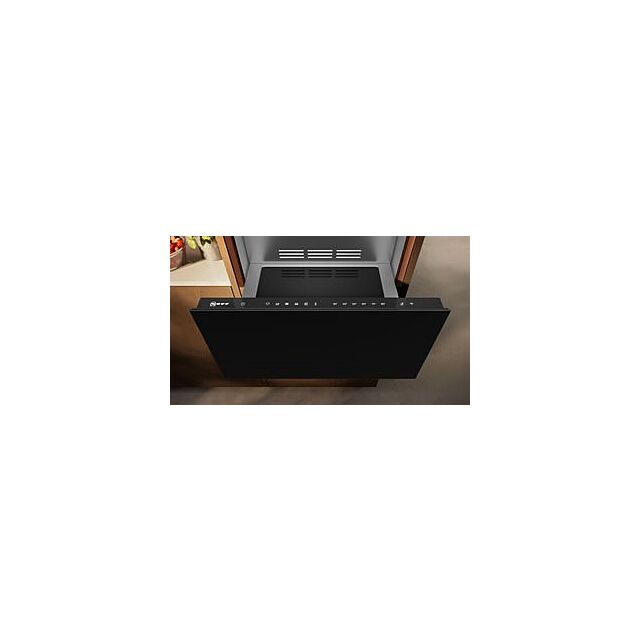

Neff N39HA11Y1B, Built-in warming drawer
Please call 01482 847279 for more information
- Warranty 5 Years
