Design
- ceramic glass surface, black

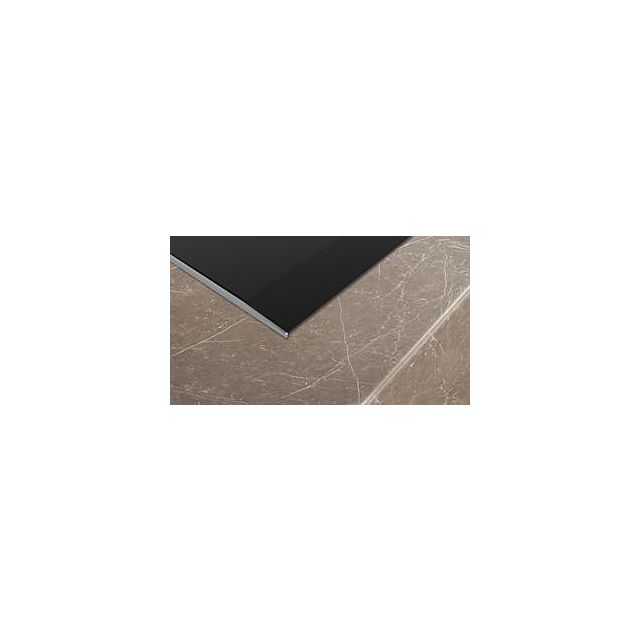

- Facette front, rear and side profiles, aluminium, brushed
- Cast iron pan supports
- Low profile burner: elegant burner design
- Step Flame technology - 9 steps: precisely control and adjust the flame in nine defined levels.
- Pan supports dishwasher safe: clean without effort in the dishwasher.

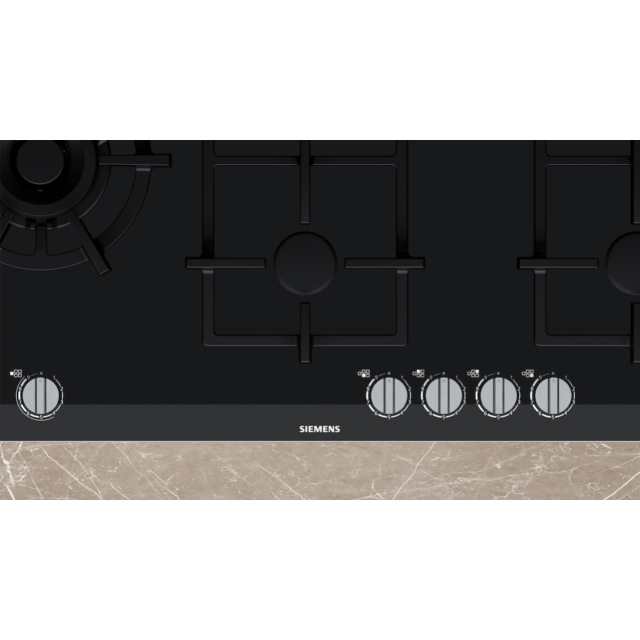

- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
- 5 burner gas hob including:
- Including 1 dual control wok burner: use an extra wide power range, separately controlling two flame rings.
- Left: Wok burner up to 6.1 KW (depending on gas type)
- Center front: Standard burner up to 1.9 KW (depending on gas type)
- Center rear: Economy burner up to 1.1 KW (depending on gas type)
- Right rear: High-speed burner up to 2.8 KW (depending on gas type)
- Right front: Standard burner up to 1.9 KW (depending on gas type)
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
- Usable for: Nat gas L/LL G25/20mbar(DE)
- NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
- Factory set for connection to mains gas
- Nozzle set for LPG jets (28-30/37mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 59 x 912 x 520
- Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 502)
- Min. worktop thickness: 30 mm
- Power cord: 1.5 m
- Connected load: 13.8 KW

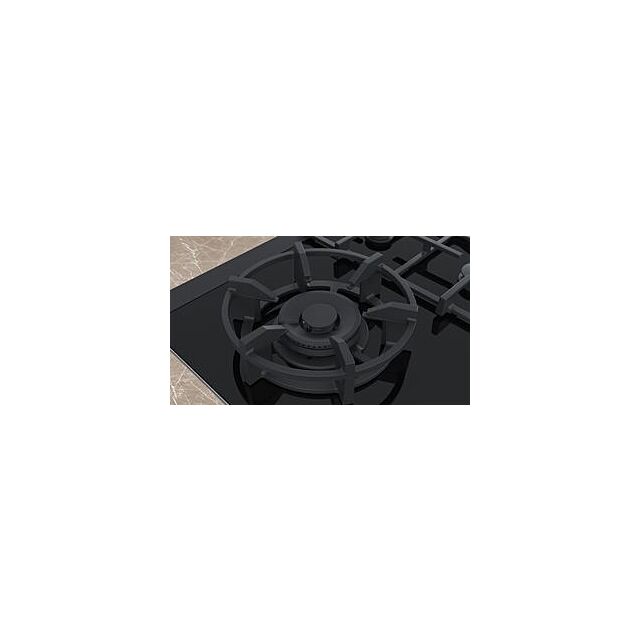

- Wok ring included
| Type of Control Settings | sword knobs |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Safety Features | Flame failure safety device |
| Appliance Current (A) | 3 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, Ukraine |
| Plug Type | no plug (electrical connection by electrician) |
| Cord Length | 150 |
| Cooker / Oven Control Panel Location | Front |
| Warranty Duration | 2 |
| Energy Input | Gas |
| Min Niche Height | 490 |
| Max Niche Height | 502 |
| Max Niche Width | 852 |
| Niche Depth | 45 |
| Cooker / Oven Time Options | No delay options |
| Fuel Type | Nat gas H/E/(L) 20 (25) mbar |
| Type of Frame | Facette fro+rear,side profiles |
| Type of Lid | Without |
| Residual Heat Indicator Type | Without |
| Colour of Frame | Black |
| Alternative Fuel Type | Liquid gas G30,31 28-30/37mbar |
| Type of Pan Support | Elongated cast iron pan support |
| Type of Safety for Gas | Electromagnetic for each burner |
| Number of Gas Burners | 5 |
| Ignition System | Yes |
| Included Accessories | 1 x WOK attachment ring |
| Width | 850 |
| Type of Control / Appliances | Mechanical |
| Manufacturer | Siemens |
| GTIN | 4242003925706 |
| Model Number | ER9A6SB70 |
