Key performance features:
- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Max. extraction rate: 638 m3/h
- Noise max. Normal Level: Noise, max. speed in normal us: 56 dB dB*
- Slider switch control for extractor speeds and light
- 3 x power levels plus intensive setting
- Twin motors
- 2 x LED spot 2.15W (low volt)
- Colour Temperature: 3500 K
- 2 x metal grease filter cassettes

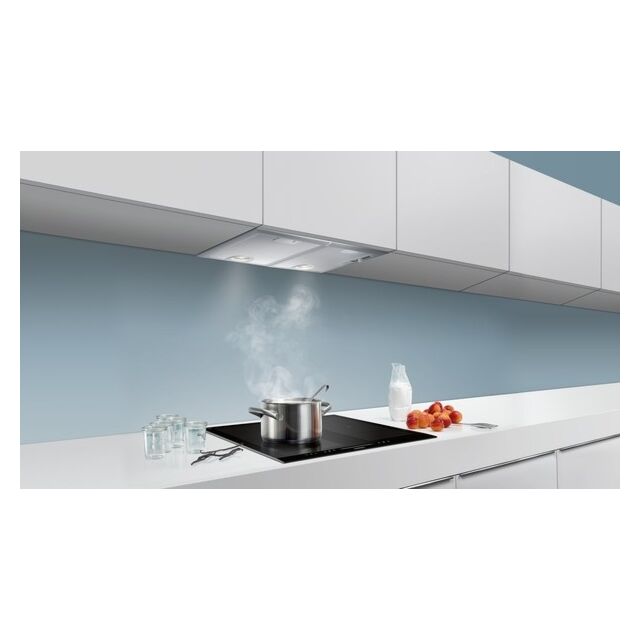

- For installation under an overhead canopy kitchen unit
- Canopy hood
- Mechanical
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 379m³/h
- Intensive 638 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 56dB(A) re 1 pW
- Intensive: 68 dB(A) re 1 pW
- Power rating: 206 W
- Light Intensity: 410 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 255-255 x 730 x 380 mm
- Dimensions recirculating, chimney (HxWxD): 255-255 x 730 x 380mm
- Built-in dimensions (HxWxD): 255 x 700 x 350 mm
- Blower Efficiency Class: D*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 81.2 kWh/year*
- Recirculating kit LZ73050
| Type of Control Settings | Mechanical slider |
|---|---|
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 130 |
| Warranty Duration | 2 |
| Max Niche Width | 700 |
| Niche Depth | 350 |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 15.9 |
| Fluid Dynamic Efficiency Class | D |
| Lighting Efficiency | 62.1 |
| Grease Filtering Efficiency | 86.7 |
| Grease Filtering Efficiency Class | B |
| Min Air Flow | 199 |
| Air Flow Boost | 639 |
| Sound Power Max Speed | 56 |
| Sound Power Min Speed | 38 |
| Sound Power Boost | 68 |
| Noise Level Boost Position | 68 |
| Max Output Air Extraction | 379 |
| Boost Position Air Extraction | 638 |
| Max Output Recirculating Air | 278 |
| Boost Position Output Recirculating | 408.0 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 2 |
| Lighting Efficiency Class | A |
| Grease Filter Type | Kassette |
| Extraction Rate (m³/h) | 379 |
| Energy Rating | C |
| Width | 700 |
| Type of Control / Appliances | Mechanical |
| Manufacturer | Siemens |
| GTIN | 4242003838419 |
| Colour | Metallic silver |
| Model Number | LB75565GB |
Write Your Own Review

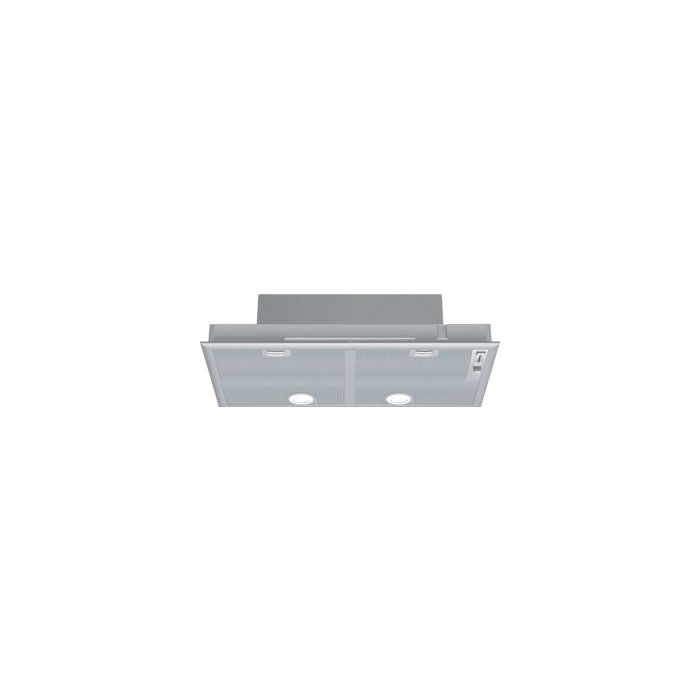

Siemens LB75565GB, Canopy cooker hood
Retail price
£379.00
Available to Order
Please call 01482 847279 for more information
Please call 01482 847279 for more information
- Warranty 2 Years
Colour
Metallic silver
Energy Rating
C
Width
700
Extraction Rate (m³/h)
379
Noise Level (db)
56
