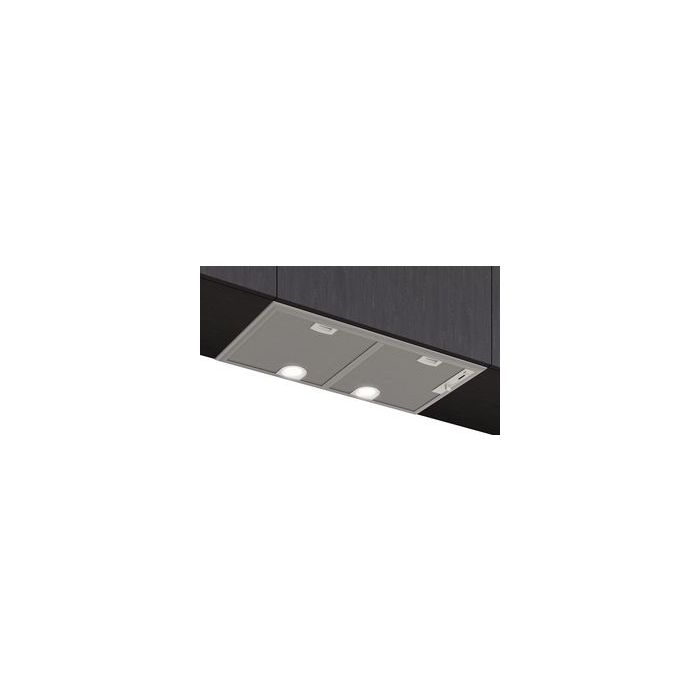

Siemens LB75566GB, Canopy cooker hood

main product photo
Be the first to review this product
£369.00
Enquire Now

Add appliance cover for£0.00 per month Cancel anytime

FIRST MONTH FREE

Receive the following benefits if your appliance fails during your appliance manufacturers warranty.

  • Appliance not fixed within 14 days? We’ll replace it.
  • Appliance failed more than 3 times? We’ll replace it.
  • And, covered for up to £125 for…
    • Time taken off work.
    • Failures caused by incorrect installation.
    • Failures caused lack of maintenance.
    • Failures caused rust or water damage.
    • Replacement of cosmetic parts if refused by the manufacturer.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expense such as laundrette costs.

After your appliance manufacturers warranty expires, you will benefit from,

  • Repairs if your appliance fails.
  • Parts & labour costs included.
  • A replacement appliance if we cannot repair yours.
  • A free appliance service for laundry, refrigeration or cooking appliances.
  • Up to £250 reinstallation costs if we replace your appliance.
  • And, if we can't repair your appliance within 3 working days you are covered for up to £125 for…
    • Lost wages due to time taken of work.
    • Damaged clothing or lost food.
    • Meal costs while your appliance is faulty.
    • Other expenses such as laundrette costs.
    • The cost of replacement cosmetic parts.

Some free of charge benefits are provided to you automatically when you purchase Protect & Care. For full details of Protect & Care, what’s included, excluded, how to claim, refunds, complaints process and how to opt out of the free benefits please read the Terms and Conditions.

Add to Wish List Add to Compare
d rating
  • Warranty 2 Years
  • ColourMetallic silver
  • Energy RatingD
  • Width700
  • Extraction Rate (m³/h)468
  • Noise Level (db)63
  • Air Flow Boost614
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Boost Position Air Extraction614
  • Boost Position Output Recirculating324.0
  • Cord Length130
  • Diameter of Air Outlet150
  • Fluid Dynamic Efficiency14.4
  • Fluid Dynamic Efficiency ClassD
  • Grease Filter MaterialWashable aluminium
  • Grease Filtering Efficiency87.3
  • Grease Filtering Efficiency ClassB
  • Installation TypeBuilt-In
  • Lighting Efficiency62.1
  • Lighting Efficiency ClassA
  • Max Niche Width700
  • Max Output Air Extraction468
  • Max Output Recirculating Air281
  • Min Air Flow229
  • Motor LocationIntegrated motor in hood body
  • Niche Depth350
  • Noise Level Boost Position68
  • Number of Lights2
  • Number of Motors2
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed63
  • Sound Power Min Speed46
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsMechanical slider
  • TypologyBuilt-in/Built-under
  • Manufacturer Guarantee2 years
  • EAN4242003979273
main product photo
Benefits
Design:
  • Canopy hood
  • For installation under an overhead canopy kitchen unit
  • Suitable for ducted and re-circulating operation
Core Features:
  • Capacitor motor
  • 2 x LED spot 2.15W (low volt)
  • Colour Temperature: 3500 K
  • Light Intensity: 410 lux
  • 2 metal grease filter(s).
Comfort Features:

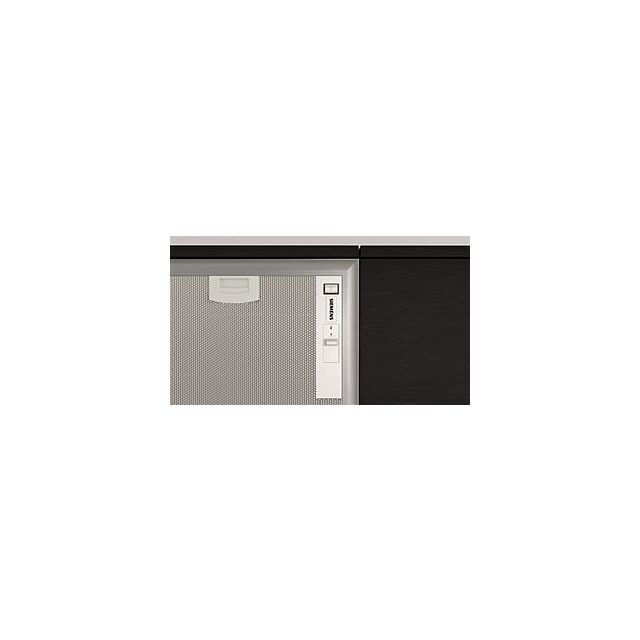

  • Slider switch control
  • 3 x power levels plus intensive setting
Cleaning Comfort:
  • Steel filter cover dishwasher-safe
Performance Exhaust:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 229 m3/h; noise level 46 dB (A) re1pW Speed 2: extraction rate 371 m3/h; noise level 57 dB (A) re1pW Speed 3: extraction rate 468 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 614 m3/h; noise level 68 dB (A) re1pW

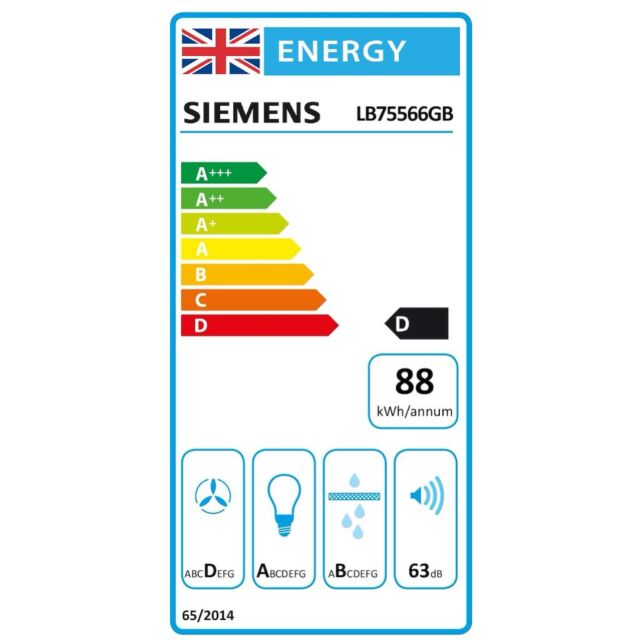

  • Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 88.1 kWh/year*
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
Performance Recirculation:
  • For recirculated extraction charcoal filter (accessory) needed
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in  recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 140 m3/h; noise level 56 dB (A) re1pW Speed 2: extraction rate 231 m3/h; noise level 67 dB (A) re1pW) Speed 3: extraction rate 281 m3/h ; noise level 70 dB (A) re1pW) Intensive Speed 1: extraction rate324 m3/h; noise level 73 dB (A) re1pW)
Technical Information and Sustainability:
  • Consumption data:
  • Power rating: 206 W
  • Voltage: Nominal voltage: 220 - 240 V
  • Sustainability:
  • Made in Germany: produced at a CO2 neutral production site
Planning and Installation Information:
  • Dimensions (HxWxD): 215 x 730 x 380 mm
  • Built-in dimensions (HxWxD): 215 x 700 x 350 mm
  • Electrical cable length 1.3 m
  • Diameter pipe  Ø 150 mm
More Information
Manufacturer Siemens
GTIN 4242003979273
Colour Metallic silver
Model Number LB75566GB
Typology Built-in/Built-under
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 14.4
Fluid Dynamic Efficiency Class D
Lighting Efficiency 62.1
Grease Filtering Efficiency 87.3
Grease Filtering Efficiency Class B
Min Air Flow 229
Air Flow Boost 614
Lighting Efficiency Class A
Noise Level (db) 63
Energy Rating D
Width 700
Extraction Rate (m³/h) 468
Cord Length 130
Plug Type GB plug
Appliance Frequency (Hz) 50
Appliance Voltage (V) 220-240
Installation Type Built-In
Type of Control Settings Mechanical slider
Max Niche Width 700
Niche Depth 350
Type of Control / Appliances Mechanical
