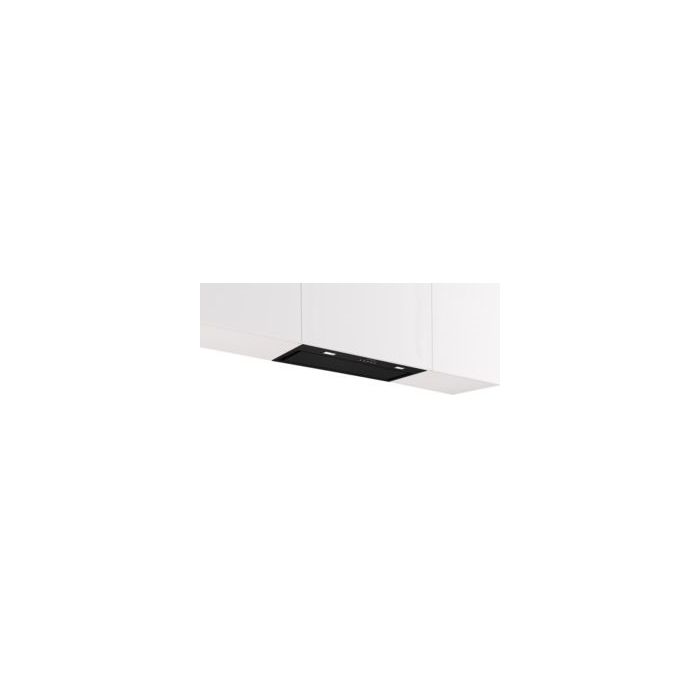

Bosch DLN77AC60B, Canopy cooker hood
£659.00
- Warranty 2 Years
- Energy RatingA
- Extraction Rate (m³/h)595
- Noise Level (db)63
Design:
- Canopy hood
- Installation: Cabinet
- Flush-fitted installation for a seamless integration in wall cupboards.
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
- 2 x 1W LED
- Colour Temperature: 4000 K
- Light Intensity: 400 lux
- Capacitor motor
- 2 metal grease filter(s).
- Soft touch button control with Electronic display
- 3 power levels & intensive setting
- Automatic reset from intensive to normal setting after 6 min
- Removable metal grease filters dishwasher-safe
- Easy to clean smooth surfaces and materials.
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 270 m3/h; noise level 45 dB (A) re1pW Speed 2: extraction rate 400 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 595 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 730 m3/h; noise level 68 dB (A) re1pW
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 55.5 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 250 m3/h; noise level 65 dB (A) re1pW Speed 2: extraction rate 350 m3/h; noise level 71 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 74 dB (A) re1pW) Intensive Speed 1: extraction rate430 m3/h; noise level 75 dB (A) re1pW)
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 260 m3/h ; noise level 53 dB (A) re1pW Speed 2: extraction rate 385 m3/h ; noise level 71 dB (A) re1pW) Speed 3: extraction rate 580 m3/h ; noise level 70 dB A) re1pW) Intensive Speed 1: extraction rate 705 m3/h ; noise level 73 dB (A) re1pW)
- Consumption data:
- Power rating: 252 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Environmentally friendly packaging
- Available odour filter as regenerative Long Life filter with 10 years lifetime
- Dimensions (HxWxD): 345 x 700 x 282 mm
- Dimensions recirculating (HxWxD): 345-345 x 700 x 282 mm
- Built-in dimensions (HxWxD): 345 x 676 x 264 mm
- Please reference the built-in dimensions provided in the installation drawings
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005475643 |
| Model Number | DLN77AC60B |
| Type of Control Settings | LED;Low-lift pushbuttons |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 3 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 60; 50 |
| Plug Type | GB plug |
| Cord Length | 150 |
| Warranty Duration | 2 |
| Min Niche Width | 676 |
| Max Niche Width | 676 |
| Niche Depth | 264 |
| Type of Light | LED |
| Number of Lights | 2 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 29.3 |
| Fluid Dynamic Efficiency Class | A |
| Lighting Efficiency | 182.0 |
| Grease Filtering Efficiency | 65.1 |
| Grease Filtering Efficiency Class | D |
| Min Air Flow | 270 |
| Air Flow Boost | 730.0 |
| Sound Power Max Speed | 63 |
| Sound Power Min Speed | 45 |
| Noise Level Boost Position | 68 |
| Max Output Air Extraction | 595 |
| Boost Position Air Extraction | 730 |
| Max Output Recirculating Air | 580 |
| Boost Position Output Recirculating | 705 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 1 |
| Lighting Efficiency Class | A |
| No Return Air Flow Flap | Yes |
| Extraction Rate (m³/h) | 595 |
| Noise Level (db) | 63 |
| Energy Rating | A |
| Type of Control / Appliances | Electronic |
