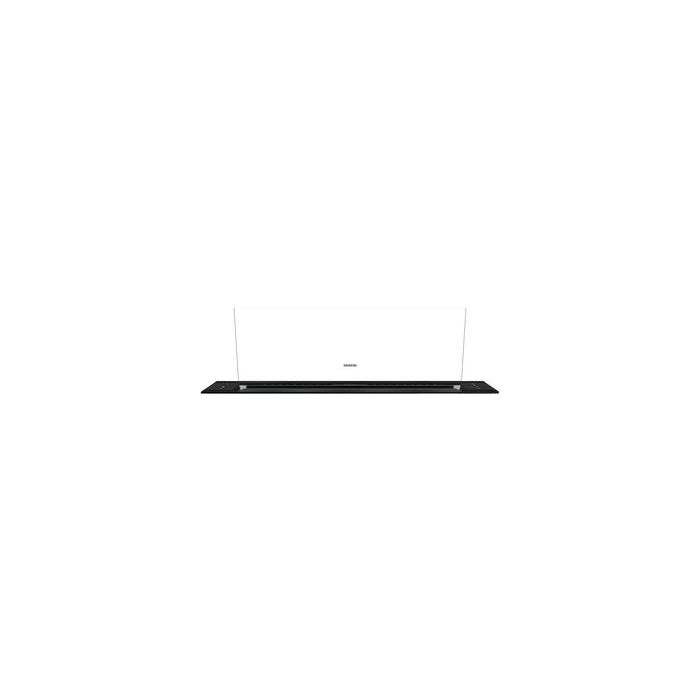

Siemens LD98WMM60B, Downdraft hood
£2,509.00
- Warranty Months Labour 2 Years Parts
- ColourBlack with clea
- Energy RatingA
- Extraction Rate (m³/h)519
- Noise Level (db)62
Connectivity
- Home Connect: Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- Interval function: available via Home Connect
- Silence function: available via Home Connect
- Fully automatic hood
- cookConnect hob based hood control
- climateControl Sensor
- 3 power levels and 2 intensive settings
- touchControl
- The standard functions are located on the right-hand user interface
- Efficient BLDC motor
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 minutes))
- 2 x metal grease filter cassettes
- Grease and charcoal filter saturation indicators
- The filter service button automatically lifts filters into service position for easy removal
- 90 cm wide
- Installation: integrated
- The glass panel can be easily removed and cleaned
- Suitable for installation in an island or Semi-island kitchen solution
- Suitable for ducted and re-circulating operation
- For recirculated extraction Clean Air Plus recirculation kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use519m³/h
- Intensive833 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:62dB(A) re 1 pW
- Intensive:71 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:456m³/h
- Intensive:596m³/h
- Noise level in recirculation mode: Max. normal use:66dB(A) re 1 pW
- Intensive:71 dB(A) re 1 pW
- Extension height 250 mm
- Dimensions (HxWxD): 709 x 912 x 140 mm
- Built-in dimensions (HxWxD): 703 x 854 x 123 mm
- Extractor hose 150 mm
- Electrical cable length 1.3 m
- Please reference the built-in dimensions provided in the installation drawings
- Not suitable for combination with gas hobs
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Power rating: 300 W
- Average Energy Consumption: 37.8 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: -*
- Grease Filtering Efficiency Class: C*
| Manufacturer | Siemens |
|---|---|
| GTIN | 4242003907122 |
| Colour | Black with clea |
| Model Number | LD98WMM60B |
| Type of Control Settings | Touch Control |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 130 |
| Warranty Duration | 2 |
| Min Niche Width | 854 |
| Max Niche Width | 854 |
| Niche Depth | 123 |
| Typology | Downdraft |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 30.0 |
| Fluid Dynamic Efficiency Class | A |
| Grease Filtering Efficiency | 82.8 |
| Grease Filtering Efficiency Class | C |
| Min Air Flow | 229.3 |
| Air Flow Boost | 833.0 |
| Sound Power Max Speed | 62 |
| Sound Power Min Speed | 41 |
| Sound Power Boost | 71 |
| Noise Level Boost Position | 71 |
| Max Output Air Extraction | 519 |
| Boost Position Air Extraction | 833 |
| Max Output Recirculating Air | 456 |
| Boost Position Output Recirculating | 596 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Lighting Efficiency Class | - |
| Grease Filter Type | Kassette |
| Diameter of Air Outlet | 150 |
| Extraction Rate (m³/h) | 519 |
| Noise Level (db) | 62 |
| Energy Rating | A |
| Type of Control / Appliances | Electronic |
